Band Knife splitting Machine

Horizontal Cutting Machine



GONG YOUNG’s advanced technology power commences in the spirit of constant challenge toward the future and the master spirit to the backbone for quality guaranteed.

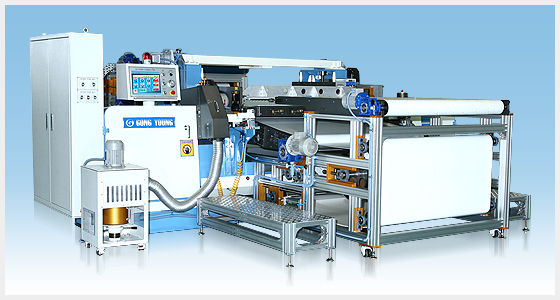

Band Knife splitting Machine

Band Knife splitting Machine

Band Knife splitting Machine



This is general basic model and available for multiple use For instance, Band knife Splitting - showing high performance of skiving and foam sheet split.

Fully automatic system with conveyor belt, effective and economical system for the various soft sponges.

This

Band Knife splitting Machine

is Available for roll works by the installing roll system.

The Band Knife splitting Machine can handle several foams continuously.

  • Electric & electronic industry, Pads for sound & vibration_proof

  • Auto industry, Gasket, shock absorption, sound-proof

  • Construction industry, sound-proof, vibration-proof, shock absorption, lags

  • Sports & leisure industry, shock absorption, lags

  • The others, diving suit, marine rescue suit, packing materials, mouse pads
    		•


    Expanded Rubber Foam - CR(especially Neoprene) EPEM rubber. EVA. PU. PE. EPP, EPE, PVC flexible foam, Cork and sythetic rubber with similar properties

  • Allowed tolerance of +0.1mm when splitting to thin sheets.
  • High production capacity and efficiency.
  • Versatility : able to split blocks, slabs and roll goods.
    		•

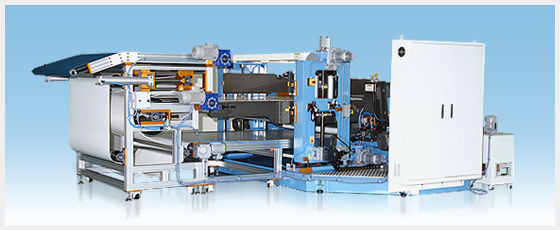

  • GY-1700-CONV.2 with rotary loop attachments offers the following three functions:

    •     1. long slab, endlessly glued together can be split in a circular manner
        2. long material can be split in a circular manner
        3. Roll, Several slabs, one behind another, can be split in a circular manner

  • All Operations by PLC inverter and touch screen
  • Available cutting thickness : 1mm to 200mm
  • Available cutting width : 1600mm
  • Available for upper roller up to 90mm and lower roller up to 200mm and available for up & down
        movement of 0.01mm each per a touch.
  • Sponges are provided continuously by the upper and lower rollers.
  • Quick and correct up&down movement of the upper & lower roller by servo motor
  • While cutting sponges, Grinder sharpen the knife continuously.
  • Always keep the best cutting position by automatic controller
  • Accurate and simple operation of touch screen
  • Safety system for European an U.S. market.
  • Availabel for high precision products
        - Available cutting for 1mm (tolerance +/-0.1mm), for soft sponges.
        - Available cutting for 0.7mm (tolerance +/-0.1mm), for hard sponges.

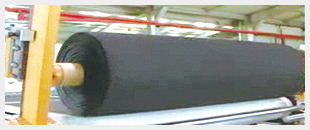

  • Available for roll products
    		•
