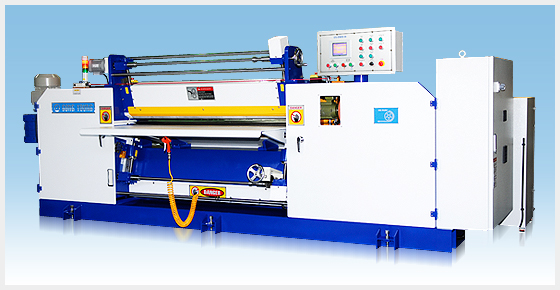

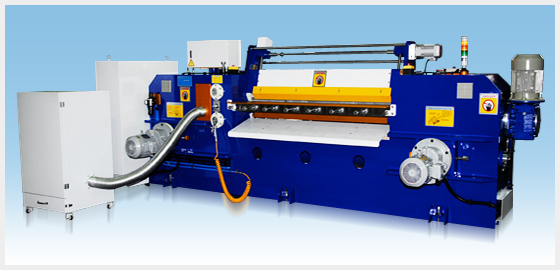

GY1500, GY1700 Manual Type

Horizontal Cutting Machine



GONG YOUNG’s advanced technology power commences in the spirit of constant challenge toward the future and the master spirit to the backbone for quality guaranteed.






This model is general basic model and available for multiple use

Our GY-1500,1700(Foam cutting machine) can be used to cut all kinds of expanded rubber foam (Neoprene), PE, EVA, EPE, PVC flexible foam, Cork, and sythetic rubber with similar properties guaranting thickness tolerance of 0.1mm.

The Touchscreen(Digital) lead automatic thickness control system provide very accurate and simple operation. The machine can be incorporated into a continuous production line.

We recommand our model No. GY-1500, GY-1700 and the hardness will be acceptable by 90 Shore and thickness will be available by 1mm.


Available for hardness (20-90 shore) foam
Expanded rubber foam - CR EPEM. EVA. PU. PE. EPP, EPE PVC flexible foam, Cork, and sythetic rubber with similar properties

Same appliction with rubber foam
  • Electric & electronic industry, Pads for sound & vibration_proof

  • Auto industry, Gasket, shock absorption, sound-proof

  • Construction industry, sound-proof, vibration-proof, shock absorption, lags

  • Sports & leisure industry, shock absorption, lags

  • The others, diving suit, marine rescue suit, packing materials, mouse pads
    		•


  • Available Convoluter (profile foam)
    		•


  • All Operations by PLC inverter and touch screen
  • Available cutting thickness : 1mm to 110mm
  • Available cutting width : 1400mm
  • Available for upper roller up to 80mm and lower roller up to 110mm and available for up & down
        movement of 0.01mm each per a touch.
  • Rubber foams are provided continuously by the upper and lower rollers.
  • Quick and correct up&down movement of the upper & lower roller by a motor
  • While cutting foams, Grinder sharpen the knife continuously.
  • Always keep the best cutting position by automatic controller
  • Accurate and simple operation of touch screen
  • Allowed tolerance : +0.1mm
    		•
