Horizontal Cutting Machine
GONG YOUNG’s advanced technology power commences in the spirit of constant challenge toward the future and the master spirit to the backbone for quality guaranteed.
|
| |
|
This is general basic model and available for multiple use.
For instance, skiving Machine and splitting foam sheet - showing high performance of skiving and foam sheet split.

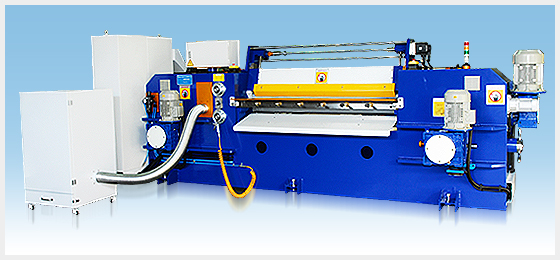

Our GY-1500,1700(Foam Sheet Splitter, Skiving machine) can be used to skive & cut all kinds of expanded rubber, Cork, PE,EVA foam products guarantying 1mm thickness tolerance.
The Touch screen (Digital) lead automatic thickness control system provides very accurate and easy operation. The machine can be incorporated into a continuous production line.
We recommend our model No. GY-1500, GY-1700 such as Skiving machine and the hardness will be acceptable by 90 Shore and thickness will be available by 1mm.
|
|
| |
|
Available for hardness (20-90 shore) foam

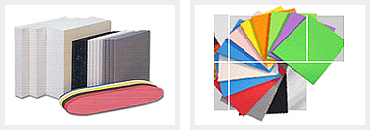

Expanded rubber foam - CR EPEM. EVA. PU. PE. EPP, EPE PVC flexible foam, Cork, and sythetic rubber with similar properties |
|
| |
|
Same appliction with rubber foam
Electric & electronic industry, Pads for sound & vibration_proof
Auto industry, Gasket, shock absorption, sound-proof
Construction industry, sound-proof, vibration-proof, shock absorption, lags
Sports & leisure industry, shock absorption, lags
The others, diving suit, marine rescue suit, packing materials,
mouse pads |
| |
 |
| |
| Available Convoluter (profile foam) |
| |
 |
|
| |
|
All Operations by PLC inverter and touch screen
Available cutting thickness : 1mm to 110mm
Available cutting width : 1400mm
Available for upper roller up to 80mm and lower roller up to 110mm
and available for up & down
movement of 0.01mm each per a touch.
Rubber foams are provided continuously by the upper and lower rollers.
Quick and correct up&down movement of the upper & lower roller by a motor
While cutting foams, Grinder sharpen the knife continuously.
Always keep the best cutting position by automatic controller
Accurate and simple operation of touch screen
Allowed tolerance : +0.1mm |
|
| |
| Model |
GY1500 (Auto Type) |
GY1700 (Auto Type) |
| Working Width |
1400mm (55") |
1600mm (62.9") |
| Blade |
8000 x 100 x 1.2mm |
8400 x 100 x 1.2mm |
| Knife Wheel Drive Motor |
5HP x 4P 30:1 2EA |
5HP x 4P 30:1 2EA |
| Gauge Roller |
10HPx 4P 15: 1EA
1/2HPx 4P 10:1 2EA |
10HPx 4P 15:1 1EA
1/2HPx 4P 10:1 2EA |
| Grinder Drive Motor |
2HP x 2P 2EA |
2HP x 2P 2EA |
| Knife Positioning Motor |
1/2HP 15:1 1EA |
1/2HP 15:1 1EA |
| Dust Extractor |
1HP x 2P 1EA |
1HP x 2P 1EA |
| Electrical Supply |
220/480V 60/50Hz 3Phase |
220/480V 60/50Hz 3Phase |
| Net Weight |
4,300KG |
4,500KG |
| Gross Weight |
4,800KG |
5,000KG |
| Export Packing |
4750 x 1850 x 1750mm |
4950 x 1850 x 1750mm |
|
|
| |
| Roller opens-ups : Bottoms - 110mm / Top - 80mm
Knurled(rough) top and bottom rollers
Movable Touchscreen control panel
Automated roller adjustment
Electrical interlocking door
All major drives controlled via programmable inverters
Safety guard and wire
Knife positioning sensor |
| |
|
|
Grinder Stone : 5set (10 pieces)
Blade : 5set (5 pieces)
Tool Box : 1 set
High performance dust extractor : 1 set
Step-down transformer : 1 set |
|
|
