Vacuum Table Splitting Machine

GY-1400-VT

GY-VT is an automatic cutting equipment. It is a very useful machine for efficiently and economically cutting soft foam, rubber types, and various blocks, slabs, and rolls made of similar materials into thin sheets. Fully automatic system for mass production of various products. One worker can handle all cutting processes. Once the material has been placed on the vacuum table, set the thickness of the work in several stages and start working. The operator only needs to load the cut product. Vacuum table height and pressure rollers can be preset/stored according to material and cutting thickness, and all cutting processes can be automatically processed once set. In addition, you can re-process the previous work by bringing it in. The vacuum device of the sliding table can securely fix the material onto the table with a strong suction force. It is possible to precisely cut rubber materials and various soft FOAMs, especially OPENCELLs. I have it.

Features

  • Fully automatic system
  • Vacuum device Even if the material is not easily fixed on the table due to its light weight, it maintains high cutting accuracy by fixing the material with excellent suction force
  • Vacuum table and machine size Depending on the requirements and applications, it can be made in customized sizes for various work widths, work lengths, and cutting heights
  • artial speed adjustable of the vacuum sliding table according to the supplied material and each part of the start/intermediate/finish

Technical data

Model GY-1600-VT GY-1400-VT
Available material width 1600mm(62.9’) 1400mm(55.1’)
Available material thickness 300mm 300mm
Available material length 2200 / 2400 / 2600mm, selectable 2200 / 2400 / 2600mm, selectable
Available cutting thickness (max) 80mm 80mm
Close cutting tolerance ±0.1mm ±0.1mm
Feeding speed 2-40m/min 2-40m/min
Knife opening from vacuum table 300mm 300mm
Roller opening from knife 80mm 80mm
Knife wheel drive 7.5kw(10hp) 7.5kw(10hp)
Knife positioning (up/down) 2kw, servo (brake type) 2kw, servo (brake type)
Auto-knife control positioning 1kw(1.5hp) 1kw(1.5hp)
Roller drive 1kw(1.5hp), servo 1kw(1.5hp), servo
Roller positioning(up/down) 0.4kw(½hp), servo 0.4kw(½hp), servo
Table drive 3.5kw(5hp), servo 3.5kw(5hp), servo
Table vacuum 11kw(15hp) 11kw(15hp)
Grinder drive 1.5kw(2hp) x 2 1.5kw(2hp) x 2
Dust extractor 2.2kw(3hp) 2.2kw(3hp)
Electrical power capacity 33kw, Approx. 33kw, Approx.
Electrical requirements 220V, 60/50Hz, 3Phase 220V, 60/50Hz, 3Phase
Net / Gross weight 5600 / 6400kgs 54600 / 6400kgs
Footprint L4840 x W5400 x H2050mm L4640 x W5400 x H2050mm
  • Width and Length of the vacuum table - can be custom made suitably for different working widths and lengths according to the requirements and purpose.
  • Height for cutting-can be custom made suitable for different cutting heights according to the requirements and purposes.
✽ Specifications of this machine can be changed for quality improvement.

Applications

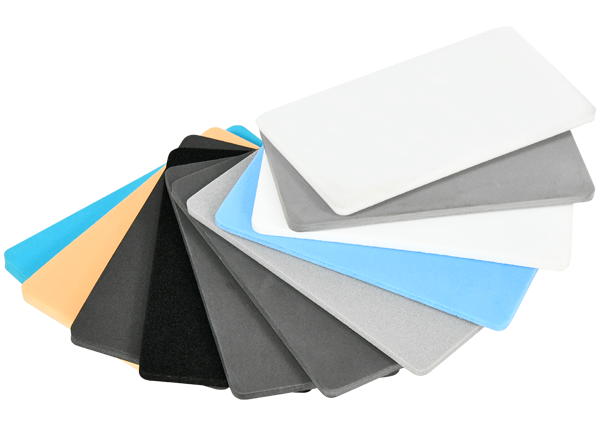

Blocks made of expanded rubber ('Neoprene'), open and closed cell foam, CR, EPDM, PU bun, PE foam, Re bonded PU and synthetic materials with similar properties

Especially, very effective for cutting Open cell foam

Lay out
