Vertical Cutting Machine
GY-E400
It is an automatic system for mass production, and the product proceeds to the end with just one setting, so it is suitable for producing multiple products at once.
Features
- The method of cutting the product vertically with the straight movement of the bandknife.
- You can choose between DOUBLE cutting and SINGLE cutting.
- Equipped with automatic control method by PLC and touch screen.
- It is equipped with a dust extractor to always work in a clean environment.
- I can adjust the cutting speed.
- With a grinder.
E.V.A. (Ethylene vinyl Acetate)
L.D.P.E. (Low Desnsity Ethylene)
Satisfying customers through top-north technology and quality Elevating mainstream products to build up corporate value.
Welcome to GONG YOUNG Ind. Machinery Co.
With the merits of a lightness, elasticity and softness, it has application to various field laminating with textiles. It has prominent cushion efficiency such a shock absorptiveness, keeping warmth, keeping coolness, airtightness, processing, molding, contractibility and adhesive property.
Welcome to GONG YOUNG Ind. Machinery Co.
With the merits of a lightness, elasticity and softness, it has application to various field laminating with textiles. It has prominent cushion efficiency such a shock absorptiveness, keeping warmth, keeping coolness, airtightness, processing, molding, contractibility and adhesive property.
C.R. (Chloroprene Rubber)
E.P.D.M. (Ethylen Propylene Dine Methylene)
CR - Open and closed cell foam has a heat-resisting, weatherresisting, ozone-resisting, chemical-resisting and a good balance including material property. It shows it’s ability in salt water as the sea.
EPDM - A foam sponge made from E.P.D.M ploymer, has a excellent ozone-resisting, cold-resisting, oil-resisting, and has application to the industrial field.
EPDM - A foam sponge made from E.P.D.M ploymer, has a excellent ozone-resisting, cold-resisting, oil-resisting, and has application to the industrial field.
Technical data
| Model | GY-E400 |
|---|---|
| Available max material width | 1300mm |
| Available max material length | 2200mm |
| Available max cutting thickness | 400mm |
| Control panel | Small touch screen |
| Electrical requirements | 380V, 60/50Hz, 3Ph |
| Net / Gross weight | 1700 / 2200kgs |
| Footprint | L3760 x W4530 x H2000mm |
Applications

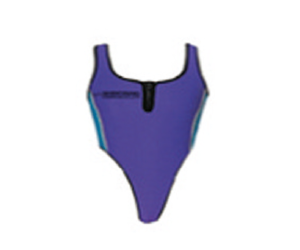

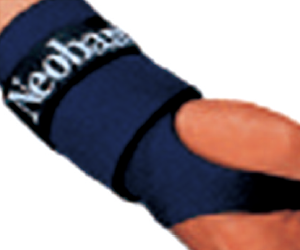

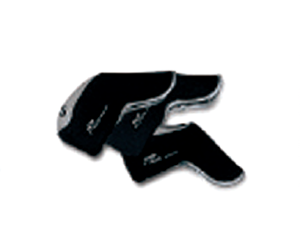

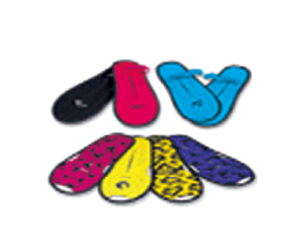

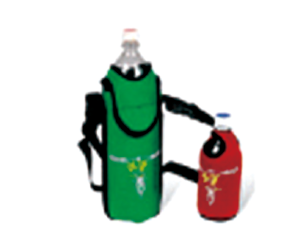

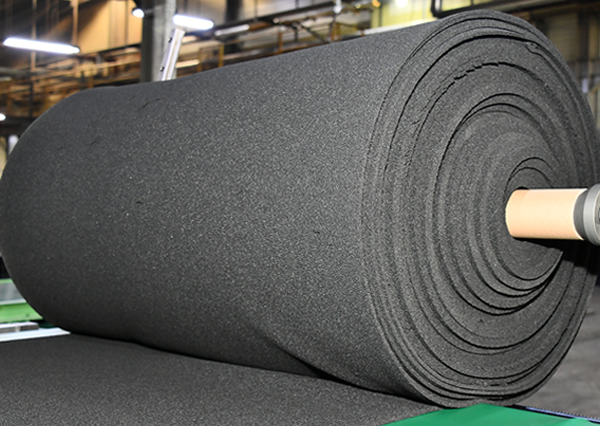

This Neoprene foam sheet are widely used for Recreational products, Ranging from diving suit, boots glove, bottle case to wader

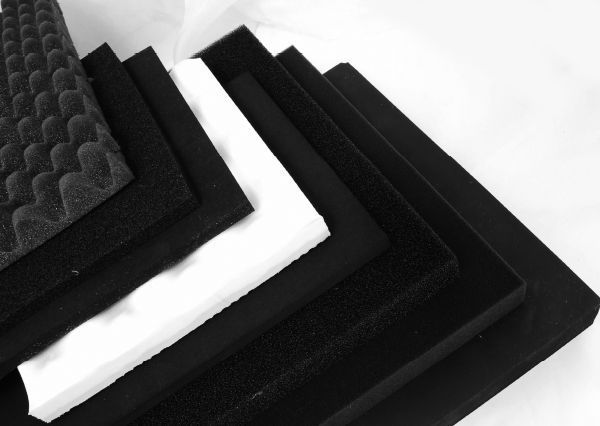

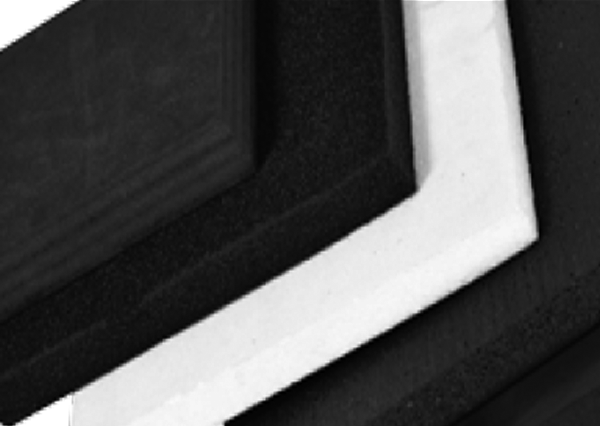

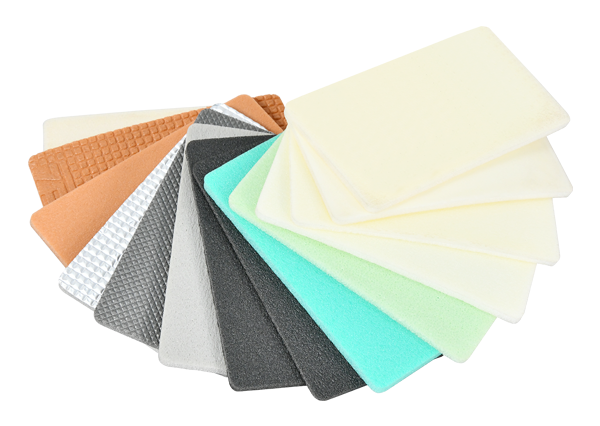

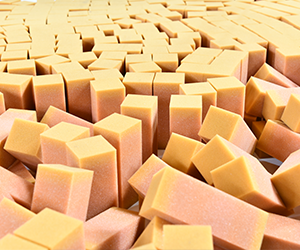

Blocks made of expanded rubber ('Neoprene'), open & closed cell foam, CR, EVA, EPDM, PE foam, PU bun, Bonded PU and synthetic materials with similar properties
